Transmitter Pro

If you use a DSLR camera and want to trigger higher than 1/200s keep in mind that the final Sync Speed depends on the camera, camera electronics, mechanics, software, digital chip size, etc.
A faster synchronization is only possible with some mirrorless cameras that can sync up to 1/1000s or even shorter.
To go higher than the average speed of your DSLR camera (1/200s mostly), please look for the Transmitter Pro. The Hi-Sync or HSS feature allows you to go up to 1/8000s shutter speed.

Learn more about Hi-Sync and HSS technology.

A list of compatible cameras and flash units with the Transmitter Pro is available here.
www.elinchrom.com/support/compatibility/

HSS and Hi-Sync allow you to achieve high shutter speed.

• Hi-Sync (HS) is an Elinchrom technology that is similar to HyperSync from PocketWizard but is much easier to use and produces better results.
• High Speed Sync (HSS), on the other hand, in general, is a less powerful tool.
  But, with ELB 500 TTL, ELC, and Elinchrom ONE/FIVE, we have been able to optimize HSS to the point that it is not dissimilar in power to Hi-Sync, thus making Elinchrom’s HSS the most powerful HSS from comparable powered units on the market to date.

More information about HS and HSS technologies.

ODS means Over Drive Sync in Hi-Sync mode.
It enables to fine-tune the Transmitter Pro trigger signal to optimize exposure at high shutter speeds while gaining more light.
The ODS Setup offers adjustment from 0.1 to 5.0 ms or can be switched off.
The ODS value will vary depending on the camera and the flash unit used, and must be adjusted manually.

Please make sure your Elinchrom unit and Transmitter are both updated with the latest firmware.
www.elinchrom.com/support/firmware

Yes, you can use it but in manual mode only.
Only the hot-shoe middle contact is available to trigger Elinchrom flash units.
You can use a Canon Transmitter Pro on a Nikon camera or a Nikon Transmitter Pro on a Canon in manual mode.
You can still control power and see the unit displayed on the Transmitter.
Keep in mind HS, HSS and ODS features are not available and will not have any effect.

It is not possible to change the flash unit ID numbers.
The ID number is unique to each product and currently unchangeable.
But you can give a custom name directly from the Elinchrom App / Software.

Gradient refers to the homogeneity of the picture when shooting above the X-sync.
Gear optimized for Hi-Sync, such as the Quadra HS head, limits this gradient effect.
With gear compatible with HSS, this gradient effect doesn’t exist.

Clipping and banding are the same.
Banding is the black band on the picture that occurs without Hi-Sync or HSS technology.
The light out of flash is not synchronized correctly to shutter speed and creates that black band.

The Skyport Transmitter system has 2 operating modes that offer different shooting functionalities.


NORMAL Sync Mode
Green LED – 200 m (656’) working range – Synchro is limited to X-Sync.

SPEED Sync Mode
Red LED – 100 m (328’) working range – Synchro is limited to X-Sync but enables faster shutter speeds only on digital medium format cameras.

To use shutter speeds of up to 1/8000s, the HS / Hi-Sync mode must be activated on the Transmitter Pro when used in both Normal and Speed mode.

Read more about the ELSP mode.

In the Auto Mod setting, you can decide to activate the modeling lamp to help you focus on your subject.

2 options are available:

• Shutter; When you press the shutter of your camera, the modeling lamp turns on. This feature is only available on Canon.
• DOF; When you press the DOF button of your camera, the modeling lamp turns on.

Hi-Sync or HSS mode is detected automatically.
Enabling the Hi-Sync/HSS feature is very simple but different for each camera.
However, some cameras need a specific setup to be able to engage Hi-Sync or HSS.
How to setup hi-sync / hss mode.

Yes, TTL Elinchrom units integrated into an existing Elinchrom setup with Hi-Sync and HSS altogether work seamlessly.

Read more about this.

There is no difference; both names refer to the same product.
Skyport Plus HS is the Transmitter Pro‘s previous name and is no longer used.
Starting from firmware 2.1, bringing TTL compatibility with compatible units, the Skyport Plus HS became Transmitter Pro.

Firmware release notes

Hi-Sync or HSS mode is detected automatically with compatible units.
However, some cameras need a specific setup to be able to engage Hi-Sync or HSS:
How to setup hi-sync / hss mode.

• Always check if you have the latest firmware installed.
• If you use higher shutter speeds 1/400s and more, you should see a little “HS” symbol in the upper bar of the Transmitter Pro; this indicates that hi-sync is active.
• Try different shutter speeds.
• A decent grading over the image is unavoidable; this is the relation between camera chip size and the flash duration of the unit.
• Try to use lower flash power settings. Hi-Sync requires a longer flash duration.
• On the Transmitter  Pro, you find the ODS settings. Try to play with this setting to shift the exposure window to the best possible sync result.

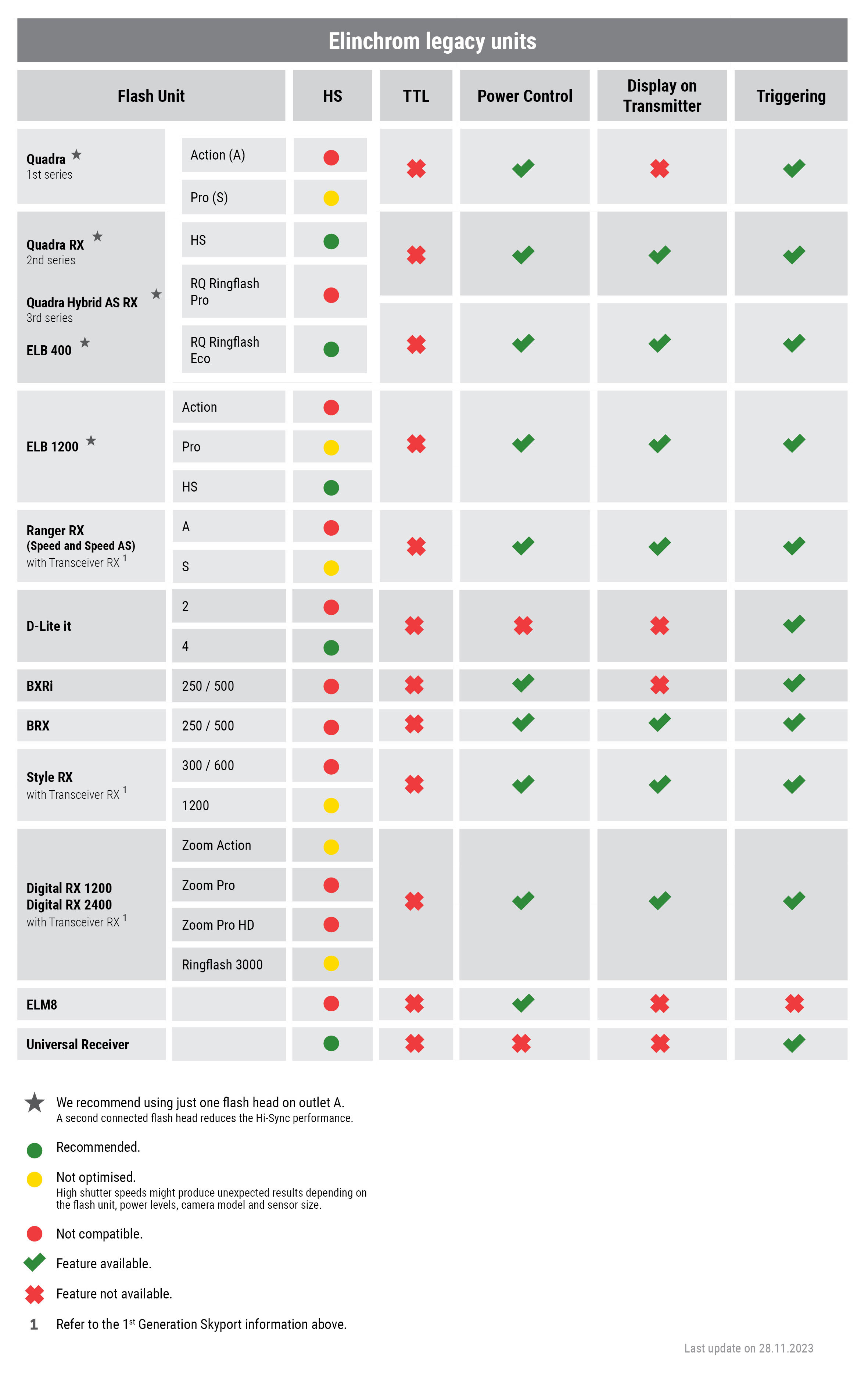

The Elinchrom ONE/THREE/FIVE, the ELB 500 TTL, and the ELC 125/500 are compatible with TTL along with the Transmitter Pro.

For more information, please check the compatibility chart.

If your camera is not listed as compatible, it simply means that it has not yet been tested with all possible features.
Don’t worry, you can test it, it will not have any negative effect on the camera.

Please check the compatibility chart to know what unit is HSS compatible.
