Elinchrom ONE

Off-Camera Flash

Follow the story wherever it takes you.

A portable, rugged and dependable off-camera flash equipped for your next adventure.

With only 1.5 kg (3.3 lbs), the ONE merges 131Ws of capacity with features including an integrated Li-ion battery, USB-C Active Charging, TTL, HSS, and a streamlined touch interface into a low profile housing.

The supremely compact and lightweight Elinchrom ONE is equipped for your next adventure.

Wherever that will be.

See the features      Check the specs

Keep a low profile

Add the versatility of an off-camera flash with light shaping capabilities.
Similar in size and weight (1.5kg/3.3 lbs) to a 70-200mm lens, the ONE is ready to travel with you anywhere and everywhere.

Brave the elements

Capable of producing 725 full-power flashes on a single charge, the ONE is ready for longer shoots.
The Li-Ion battery is sealed for enhanced protection from the elements while on location.

Never lose momentum

With Active Charging, the ONE can be connected to any power source and continue shooting while charging regardless of the battery’s power level, keeping your workflow uninterrupted.

Navigate swiftly

With a touchscreen and quick menu interface, experience streamlined access to the ONE’s settings to ensure you never miss a chance to capture the moment.

Follow the story wherever it takes you.

“The ONE is very lightweight and doesn’t have to be plugged in anywhere.”

Brenda Bazán

The ONE is ready to travel with you.
Anywhere and everywhere.

Elinchrom-flash-lamp
Four times the power of a Speedlight.

More power in one hand

  • Elinchrom ONE 4x Speedlights
  • Speedlight 1x
Transmitter Pro

Power with HSS

Darken or outshine the ambient light or use a wider aperture: the Elinchrom Transmitter Pro gives you access to HSS to seamlessly synchronize at speeds up to 1/8000s.

Be prepared

Shoot in TTL to speed up your workflow and take control with Manual Lock without losing your exposure settings to make quick adjustments and explore new creative effects.

Supreme portability

Weighing only 1.5kg (3.3 lbs) and similar in size to a 70-200mm lens, the ONE is ready to travel with you anywhere and everywhere.

The removable tilt head with a 7-8 mm umbrella mount detaches, making the ONE even more ergonomic for hand-holding.

Never lose momentum

Integrated Li-Ion battery
Enables up to 725 full-power flashes on a single charge and enhanced protection from the elements while on location.

Charge and continue shooting from any power source
Charge the Elinchrom ONE from any USB-C source without proprietary spare batteries or chargers and continue shooting while charging regardless of the battery’s power level.

Optimal light spread

Shaping light is at the heart of every great image you create.
Designed around an unconcealed flash tube for optimal light spread, the Elinchrom ONE ensures you experience the beautiful light quality Elinchrom is known for.

Your choice of light shapers

Engineered to use the newly developed Elinchrom OCF modifier mount, the Elinchrom ONE is also compatible with most Profoto bayonet light shapers, greatly expanding your selection of available light shaping tools.

Do more with less

Engineered for peak efficiency, its 131 Ws of capacity generates a light output usually seen in 200+ Ws units. At 1 meter (3.3ft) and 100 ISO, the ONE can achieve F-11.9, with the Diffusion Dome attached, and when combined with the HP Reflector, the achievable F-Stop climbs to F-45.2.

Get set for your next adventure.

Elinchrom ONE Kits

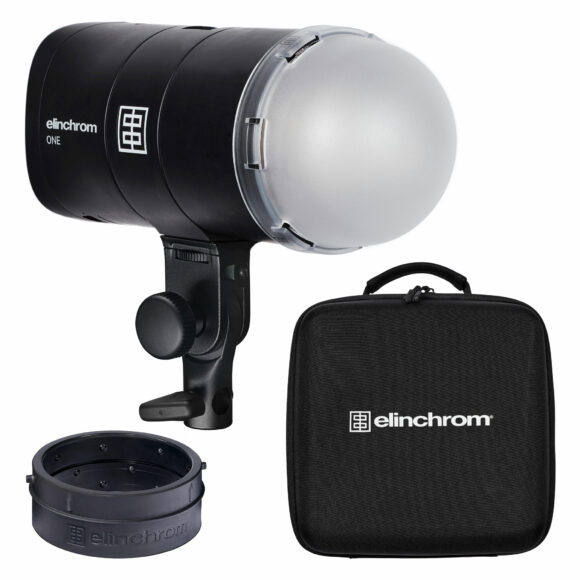

Elinchrom ONE Off-Camera Flash Kit

EL20932.1

Elinchrom ONE Off-Camera Flash Dual Kit

EL20931.2

What's included?
Elinchrom ONE Off-Camera Flash Kit
EL20932.1

1x Elinchrom ONE – EL20930.1
1x Elinchrom OCF Adapter – EL26346
1x Elinchrom OCF Diffusion Dome – EL25110
1x Elinchrom 65W USB-C Wall Charger – EL11052
1x Elinchrom USB-C Cable 1.8 m (5.9’’)
1x Elinchrom ONE Case – EL33250
2 Year Warranty

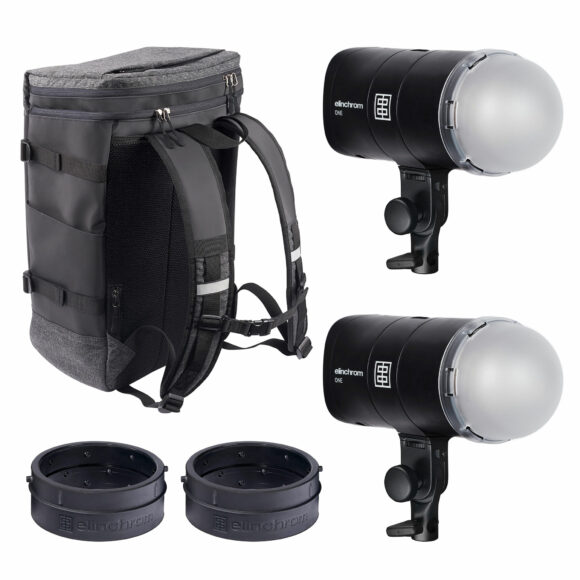

Elinchrom ONE Off-Camera Flash Dual Kit
EL20931.2

2x Elinchrom ONE – EL20930.1
2x Elinchrom OCF Adapter – EL26346
2x Elinchrom OCF Diffusion Dome – EL25110
2x Elinchrom 65W USB-C Wall Charger – EL11052
2x Elinchrom USB-C Cable 1.8 m (5.9’’)
1x Elinchrom ONE Backpack – EL33252

2 Year Warranty



Recommended Accessories

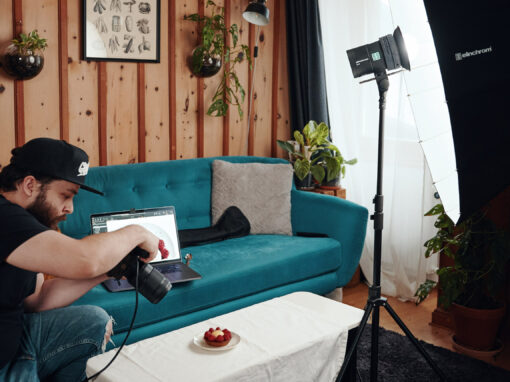

OCF Wide Reflector 16 cm (6.3’’)

EL26090 - Suits for a bright single light source and even illumination with umbrellas and backgrounds, copy work or large groups photography. This OCF Wide Reflector is Umbrella compatible.

Elinchrom OCF Barndoors

EL26002 - With four trapezium-shaped metal barndoors, this accessory can be mounted directly on the unit to dimmish light spread in all directions or shape a rectangular light beam.

Elinchrom OCF Gel Dome Kit

EL25112 - Six colored Diffusion Domes serve double duty. As a colored modifier producing softer light with an even spread to use with other accessories. And as a protective, polycarbonate cover for Elinchrom OCF units.

EL26345-EL-Profoto-Adapter

EL-Profoto Adapter

EL26345 - The EL Profoto Adapter enables the use of Elinchrom bayonet-equipped Speedrings, Softboxes, and accessories on light sources using the Elinchrom OCF or Profoto OCF mounts. This adapter is designed to hold large light accessories above 1kg (2.2lbs) and more.

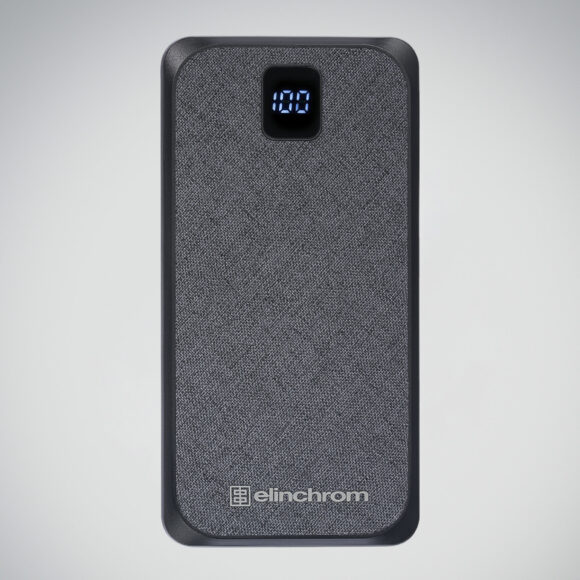

Elinchrom 20000mAh 18W Power Bank

EL11050 - Can either rapidly recharge the Elinchrom ONE 1.5 times when not in use or add 1100 full-power flashes via Active Charging. Its USB-A port can also serve as a power source for many other devices (smartphones, computers, etc).

Elinchrom ONE Backpack

EL33252 - A comfortable carry solution featuring a quick-access insert holding 2x Elinchrom ONE, 2x OCF Diffusion Domes, 2x 65W USB-C Chargers, and 2x OCF Adapters. It also offers a 16'' laptop sleeve and additional organizer pockets.

Consumables

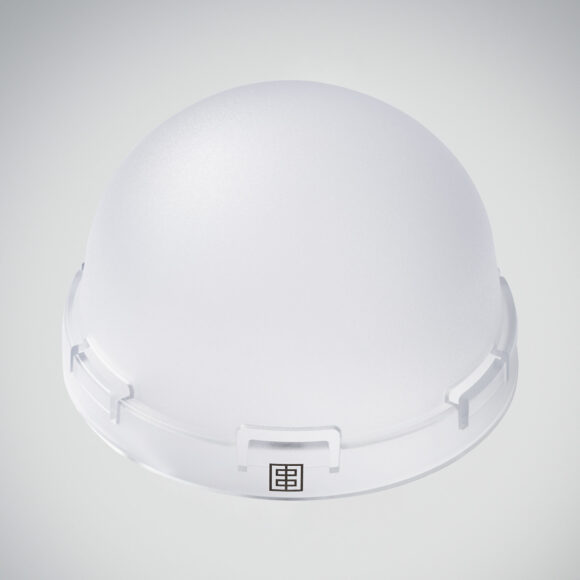

Elinchrom OCF Diffusion Dome

EL25110 - This Dome serves double duty as both a protective, polycarbonate cover for Elinchrom off-camera flashes with unconcealed flash tubes and a modifier producing softer light with an even spread.

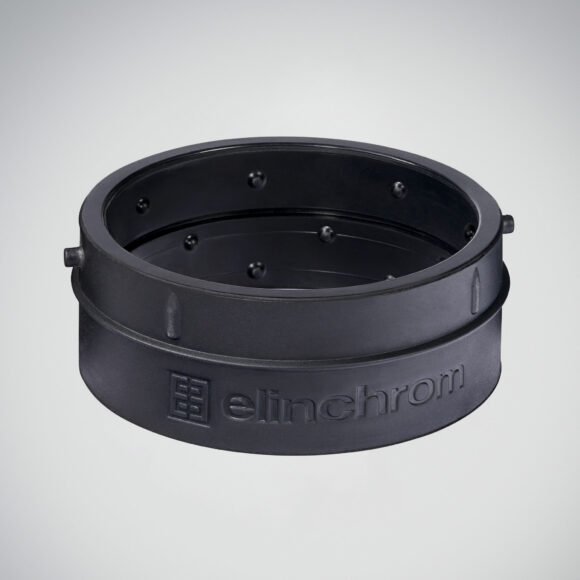

Elinchrom OCF Adapter

Elinchrom OCF Adapter

EL26346 - The OCF Adapter enables the use of Elinchrom bayonet-equipped Speedrings, Softboxes, and accessories on light sources using the Elinchrom OCF or Profoto OCF mounts. Designed to hold up to 1kg (2.2lbs)

Elinchrom ONE case

EL33250 - The Elinchrom ONE case fits 1x ONE, charger, OCF adapter, and small accessories. The internal dividers can be removed to fit also other accessories.

Elinchrom-65W-USB-C-Wall-Charger

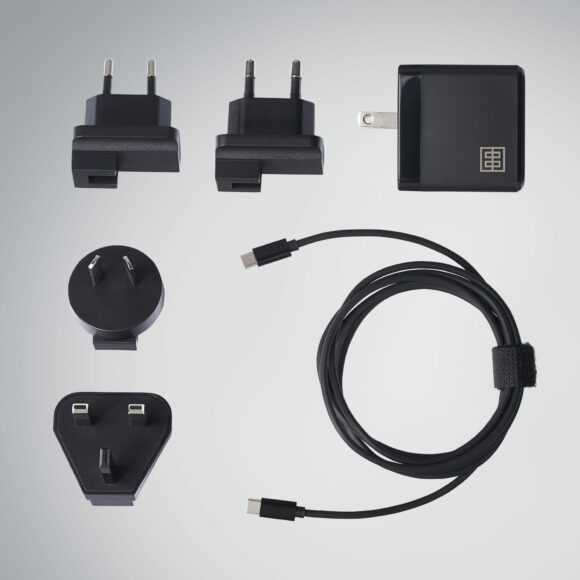

Elinchrom 65W USB-C Wall Charger

EL11052 - Enables rapid recharging of the Elinchrom ONE via AC power and supports Active Charging. Included with 1.8m (5.9’) USB-C cable and a multi-plug adapter set with plugs for US, UK, Australia, Europe and Korea.

Elinchrom Flashtube 125 J

EL24091 - Replacement plug-in flashtube for the Elinchrom ONE.

Overview

Flash output

131 Ws

Flash modes

Standard, HSS, TTL

Number of flashes

725 at full power

Weight

1.5 kg (3.3 lbs)

Elinchrom ONE

Unit

Energy 131 Ws/J
F-Stop
1m, 100 ISO, HP Reflector 26 cm, max power
45.2
F-Stop
1m, 100 ISO, OCF Diffusion Dome, max power
11.9
Power range 5 F-Stop / 7 – 131 Ws
Power increments
Manual / TTL
0.1 F-Stop / 0.3 F-Stop
Power range display
Elinchrom scale / 10 scale

0.1 – 4.3 (Elinchrom scale) / 5.8 – 10 (10 scale)

Best flash duration
t0.1 min/max power (Normal mode)
1/1530s – 1/155s
Best flash duration
t0.1 min/max power (Action mode)
1/7000s – 1/625s
Recycling time
min/max power

0.06s / 0.9s

Flash mode

Manual / TTL / HSS (with Transmitter Pro)

Action mode

Faster flash duration over the power range

Flash colour temperature
at max power

5900 K (Action) / 5600 K (HSS)*

Flash colour stability
over the power range (standard, HSS modes)
±150 K
Power stability ±0.5 %
Auto power dumping Automatic, real-time
Fan cooled Smart proactive cooling
Input USB-C
Protection class IP20

*Please note that the measured colour temperature might vary depending on the accessory, environment, and time of day.

Elinchrom ONE

Battery

Battery Li-Ion – Built-in – 41.04Wh
Battery capacity
min/max power (LED lamp OFF)
9700 / 725
Battery capacity
min/max power (LED lamp ON 100%)
3700 / 550
Battery charge status On the display if ON and side logo if OFF
Charging time
with 65W USB-C Wall Charger
60 m (80%) – 100 m (100%)
Charging time
with 18W 20000 mAh Power Bank
80 m (80%) – 135 m (100%) / Fast charge
105 m (80%) – 180 m (100%) / Slow charge
USB-C sources need to be able to deliver at least 25W for fast charge to be activated.

Elinchrom ONE

LED modeling lamp

LED modes ON/OFF, free, proportional, VFC
LED power
20W / equivalent to 120W / 3000 lm / CRI 95
LED color temperature Presets from 2700 K to 6500 K
LED run time
LED only, min/max power
10 hours / 90 minutes

Elinchrom ONE

Radio

Skyport
built-in
20 frequency channels, 4 Groups
Skyport distance range
Transmitter Pro, manual mode
Indoor: up to 60 m / Outdoor: up to 200 m
Bluetooth
built-in
Version 4.2 / Compatible Studio Software Win, Android, macOS, iOS

Elinchrom ONE

Size & dimensions

Umbrella fitting
on tilt head
7 – 8 mm
Dimensions
with Diffusion Dome and tilt head
23 x 16.5 x 10.5 cm
9 x 6.5 x 4.1 inches
Dimensions
without Diffusion Dome and tilt head
22.5 x 10 x 10 cm
8.5 x 3.9 x 3.9 inches
Weight
with/without tilt head
1.5 kg – 3.3 lbs / 1.3 kg – 2.9 lbs

Downloads

Elinchrom ONE – User Manual

Elinchrom ONE-THREE – Quick Start Guide

Elinchrom ONE-THREE – Quick Start Guide
Firmware 1.1
October 2023

Download

Travelling by Air Regulation

Battery airplane transportation regulations for the Elinchrom ONE/THREE.
November 2023

English

FAQ

Elinchrom ONE/THREE - Unit

My Elinchrom ONE/THREE froze. I can’t turn it off anymore.

If this happens, you can do a hard reset of the unit.
Under the Elinchrom ONE/THREE, close to the USB-C output, is a tiny hole.
Just press it with a little needle until the unit restarts.

Can the ONE/THREE achieve Hi-Sync?

Hi-Sync is not available with the ONE/THREE.
HSS will be enabled automatically with the Transmitter Pro and compatible cameras.
Note: Elinchrom units integrated into an existing Elinchrom setup with Hi-Sync and HSS units altogether work seamlessly.

Elinchrom ONE/THREE firmware update

How to update the firmware of the Elinchrom ONE/THREE

  1. Download the latest EL-Updater.
  2. Connect the USB-C cable to the computer.
  3. While the unit is OFF, press the Scroll button and connect the cable to the unit.
  4. “USB Mode” is displayed.
  5. Start the EL-Updater.
  6. Follow the instructions.

For Mac users with Thunderbolt ports, the unit might not appear on the Elinchrom Updater due to macOS restrictions. If this is the case, you will need an adapter from USB-C to USB-A and connect the ONE/THREE with a USB-A to USB-C cable.

How to update the Bluetooth module of the Elinchrom ONE/THREE?



Is the ONE/THREE approved for air travel?

Yes, it is.
General recommendations apply when traveling by airplane with the ONE/THREE.
Make sure the device is turned off and that you carry it with you as carry-on luggage.



Can I control the ONE/THREE via smartphone or computer?

Yes. You can control the ONE/THREE with the Elinchrom Studio Software and/or the iOS App.

How can I deactivate the touch screen?

To lock the touch screen of the ONE/THREE, press the ON button whilst powering on the unit for 9s.
The lock symbol indicates that the touch screen is locked, to unlock switch the unit OFF and ON again.

What color temperature is the modeling light?

The ONE/THREE LED modeling lamp color temperature can be set between 2700°K – 6500°K.
The output is 3000 Lumens with a CRI of 95.

Can the ONE/THREE achieve HSS (High Speed Sync)?

Yes, the ONE/THREE can enable HSS and TTL with the Transmitter Pro.

How powerful is the LED modeling light?

The Elinchrom ONE/THREE LED modeling lamp is equivalent to a 120W halogeen lamp and 3000 lm.

What is Active Charge?

Active Charge is a feature that enables you to charge while using the unit without damaging its battery.

What is Action Mode?

On Elinchrom TTL units (ELB 500, ELC, ONE, THREE) Action ON means that the focus is on providing the fastest flash duration while trading a bit of colour temperature stability.
Action OFF means that the focus is on providing the best possible color temperature stability while trading flash duration speed.


Read more

Elinchrom ONE/THREE – Accessories

How strong enough is the Elinchrom OCF Adapter?

The Elinchrom OCF Adapter is designed to hold up to 1kg (2.2lbs).
The Elinchrom-Profoto Adapter (EL26333) should be used for all payloads exceeding that limit.

Will there be dedicated Elinchrom OCF accessories?

Yes, we already have OCF Barndors (26002) and OCF Wide Reflector 16cm 90° (26090), and more is coming.

Do I need an adapter for the ONE/THREE to use the Elinchrom light modifiers I already have?

Yes, you need the Elinchrom OCF adapter included in the Kit for the ONE and the Profoto adapter included in the Kit for the THREE.


Read more

Elinchrom ONE/THREE - Battery

How can I maximise the lifetime of my battery?

Never store your unit uncharged for too long.
If you need to store it for a long period, recharge your battery completely.

Can the mains charger or the Powerbank be used whilst the unit is in use?

Yes.

How can I see the charge progress when the unit is switched OFF?

The Elinchrom icon will let you know when the unit is charging.
Red: recharging
Orange: almost charged
Green: the unit is charged

How long does it take to recharge the ONE/THREE?

What is the battery capacity of the ONE/THREE?

ONE
The battery capacity offers 9700 flashes if used at minimum power and 725 flashes if used at full power.
THREE
The battery capacity offers 11250 flashes if used at minimum power and 525 flashes if used at full power.

How long do I have to wait when the battery is discharged before I can resume my session?

As soon as the power bank is plugged in, in less than 3 minutes, you’re ready to start flashing again.

What are the benefits of The ONE/THREE’s internal sealed battery?

The sealed battery of the ONE/THREE offers better protection against weather conditions and better battery performances in a very compact and lightweight design.

How can I replace the ONE/THREE’s internal battery?

The battery can be quickly replaced by any certified Elinchrom service center.

What is the lifespan of the internal battery?

The lifespan of the ONE/THREE’s internal battery is around 400’000 full-power flashes.

What kind of USB-C devices can I use?

Any USB-C Powerbank battery can charge the ONE/THREE.

How many full power flashes can I get out of a full charge?

The ONE can deliver 725 full-power flashes from a charged battery.
The THREE can deliver 525 full-power flashes from a charged battery.
